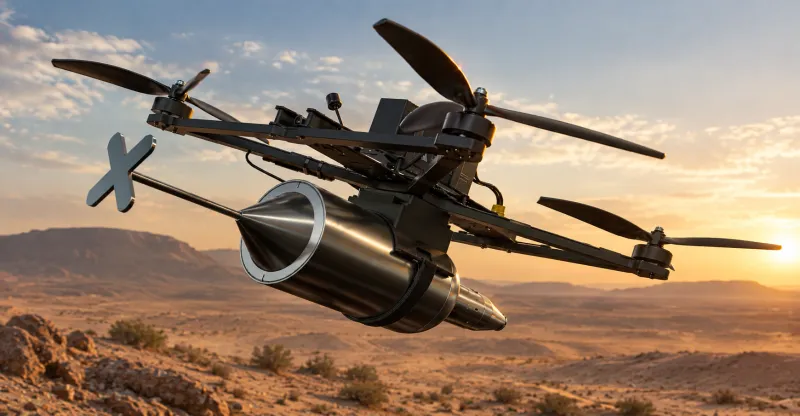

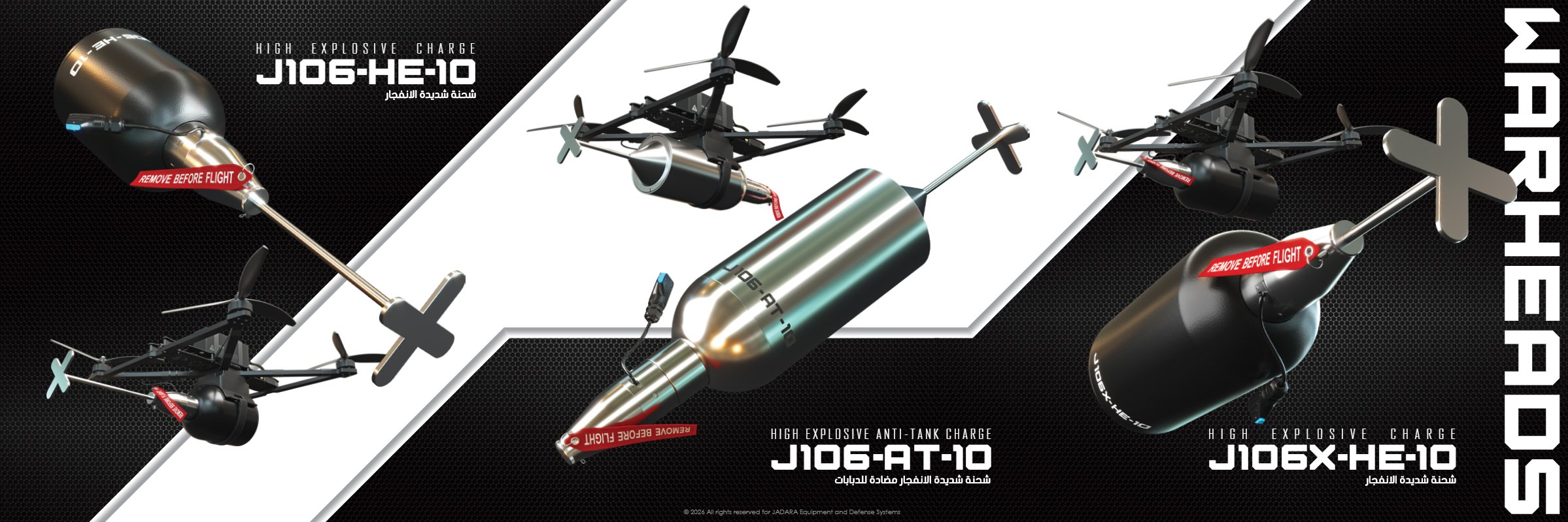

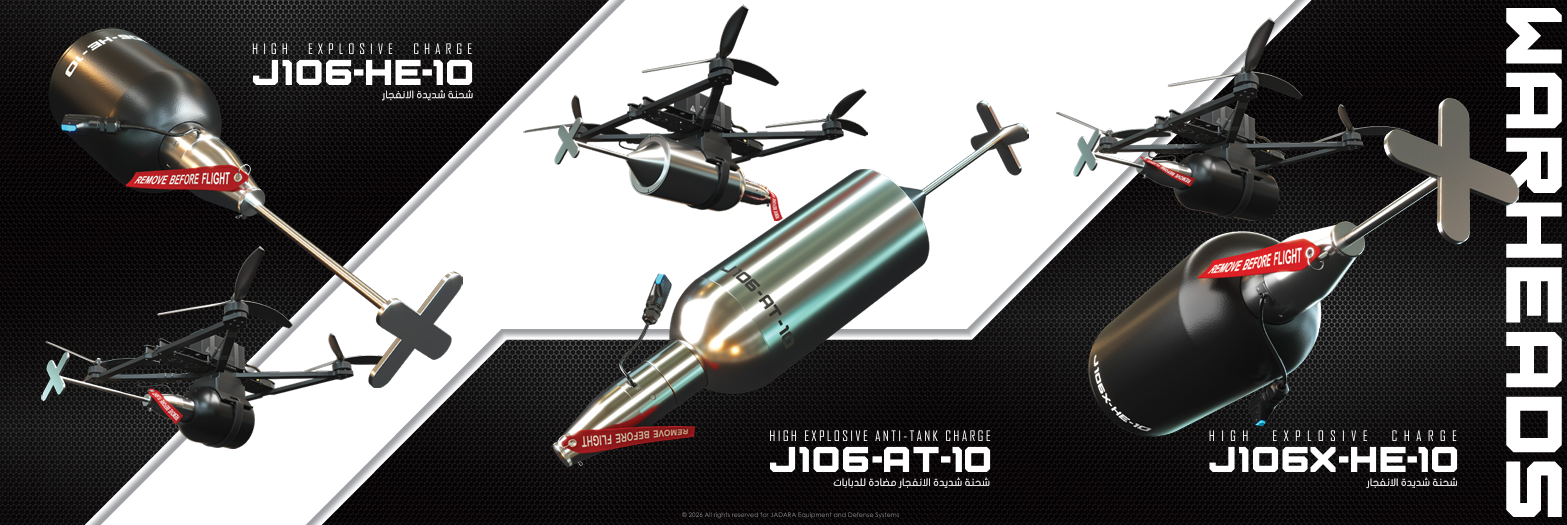

The warhead carried by the FPV drone is a high explosive anti-tank charge, 106 mm in caliber, with a mechanical impact base detonation fuze. It has a gross weight of 3.3 kg (±5%), a net explosive weight of 1.45 kg (±5%), a total length of 500 mm (±5%), and penetration of 400 mm (±10%). The warhead uses a two-stage arming sequence: a safety pin removed manually by the operator before flight, and second stage armed remotely through the control unit during flight.

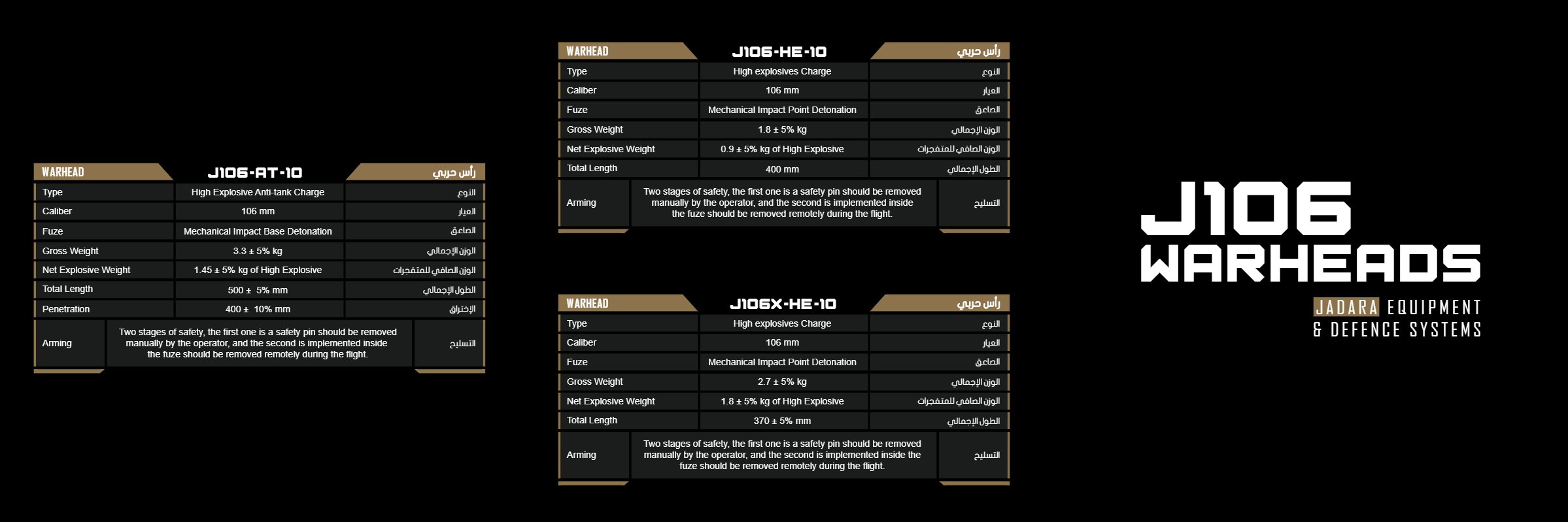

Technical Data

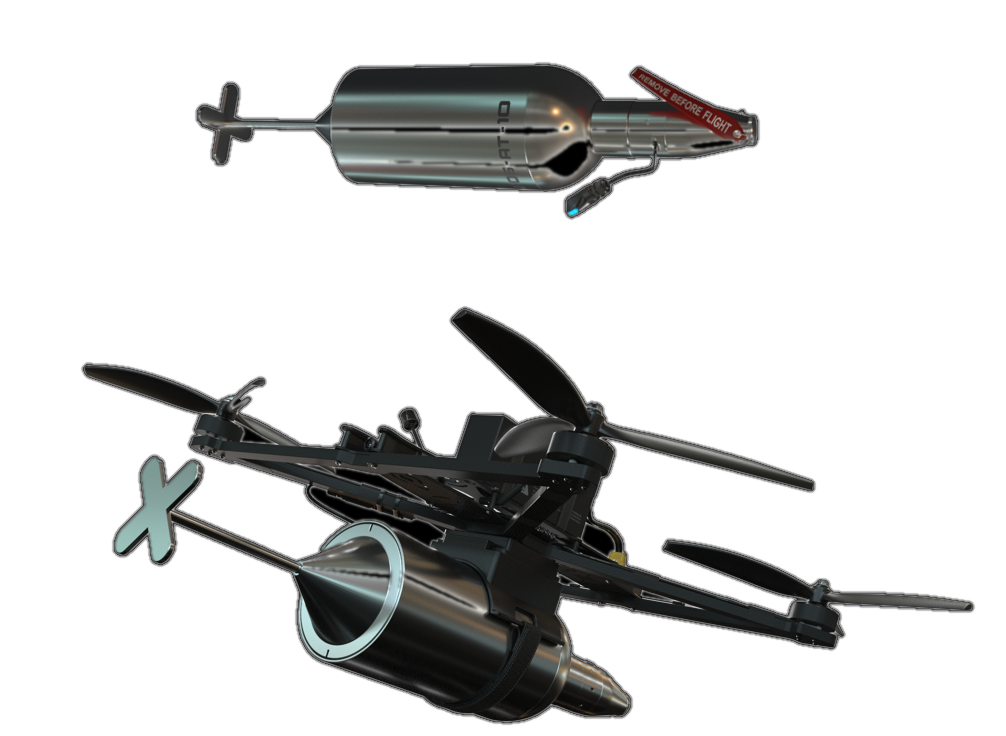

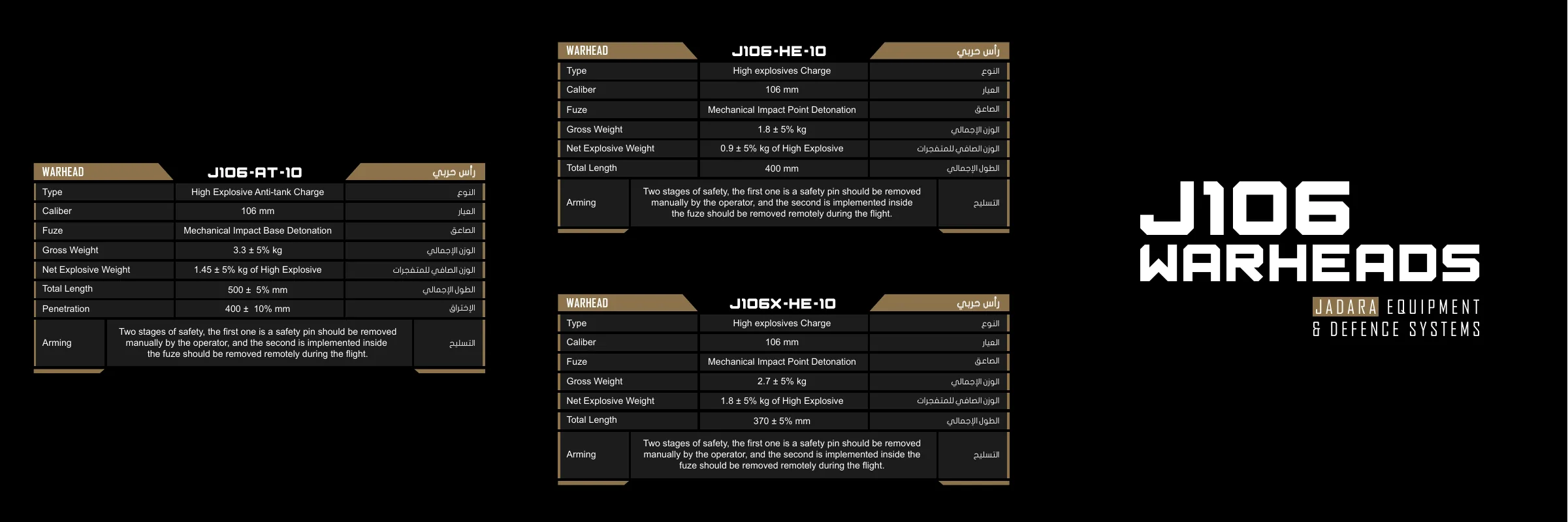

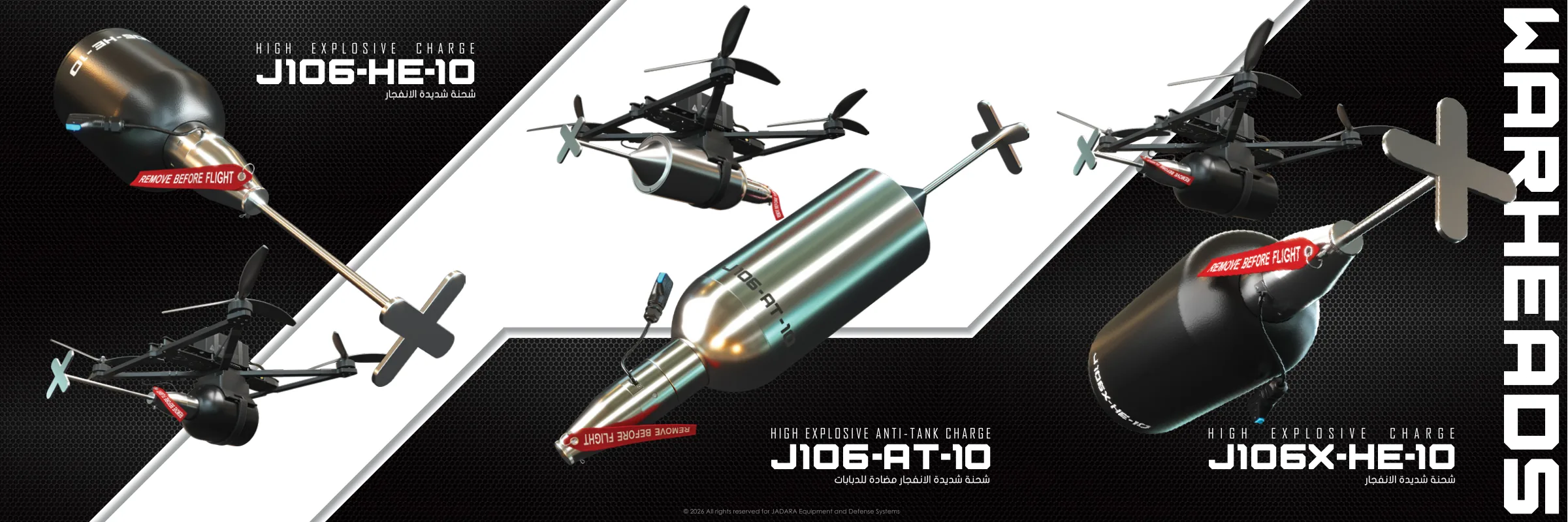

High Explosive Charge - J106-AT-10
—
Type
High Explosive Anti-Tank Charge
—
Caliber
106 mm
—
Fuze
Mechanical Impact Base Detonation
—
Gross Weight
3.3 ± 5% kg
—
Net Explosive Weight
1.45 ± 5% kg of high explosive
—
Total Length
500 ± 5% mm
—
Penetration
400 ± 10% mm
—
Arming
Two-stage safety: a manually removed safety pin before flight, and a second stage armed remotely via the control unit during flight.

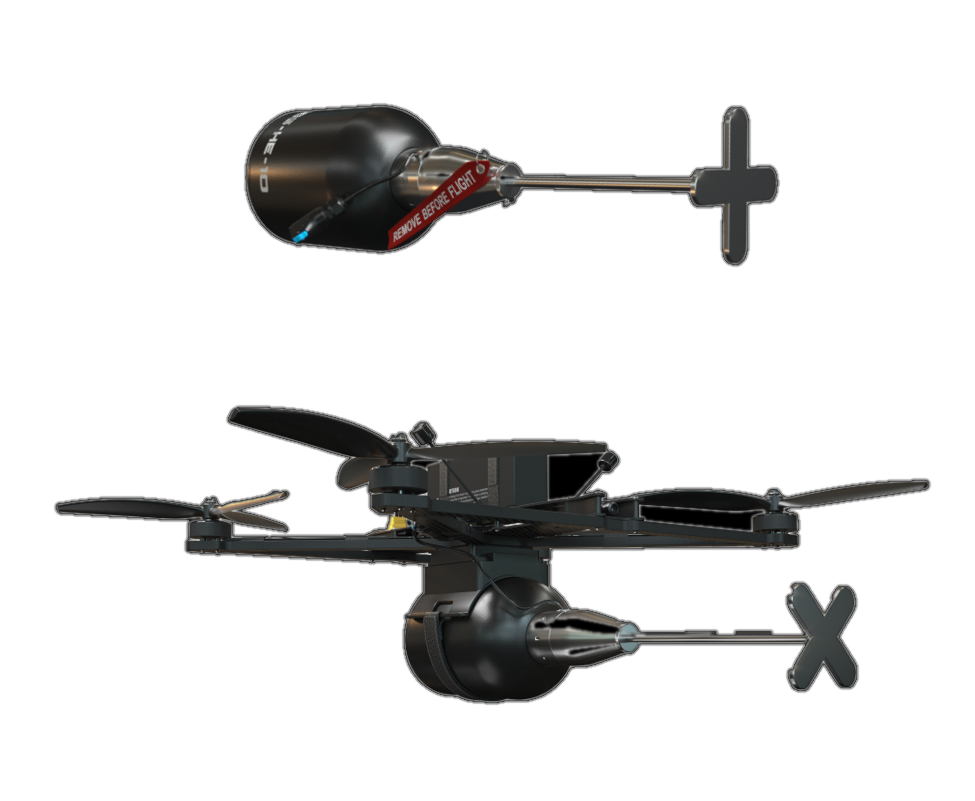

High Explosive Charge / J106-HE-10
—
Type
High Explosives Charge
—
Caliber
106 mm
—
Fuze
Mechanical Impact Point Detonation
—
Gross Weight
1.8 ± 5% kg
—
Net Explosive Weight
0.9 ± 5% kg of High Explosive
—
Total Length
400 mm
—
Arming
Two-stage safety: a manually removed safety pin before flight, and a second stage armed remotely via the control unit during flight.

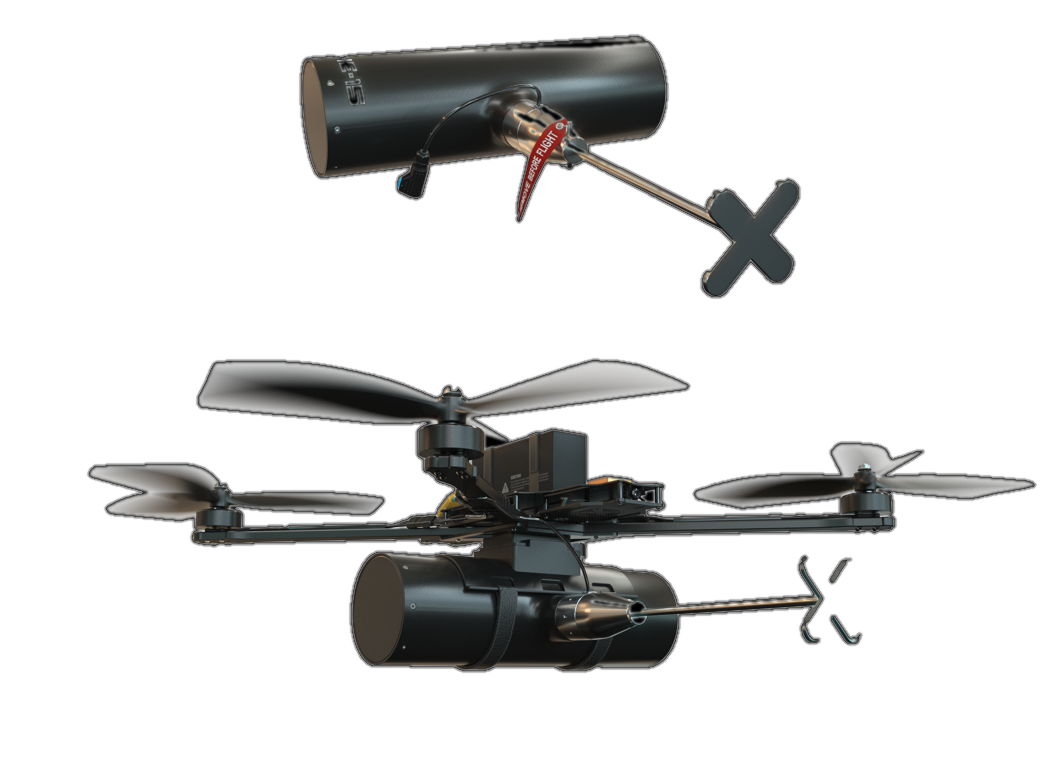

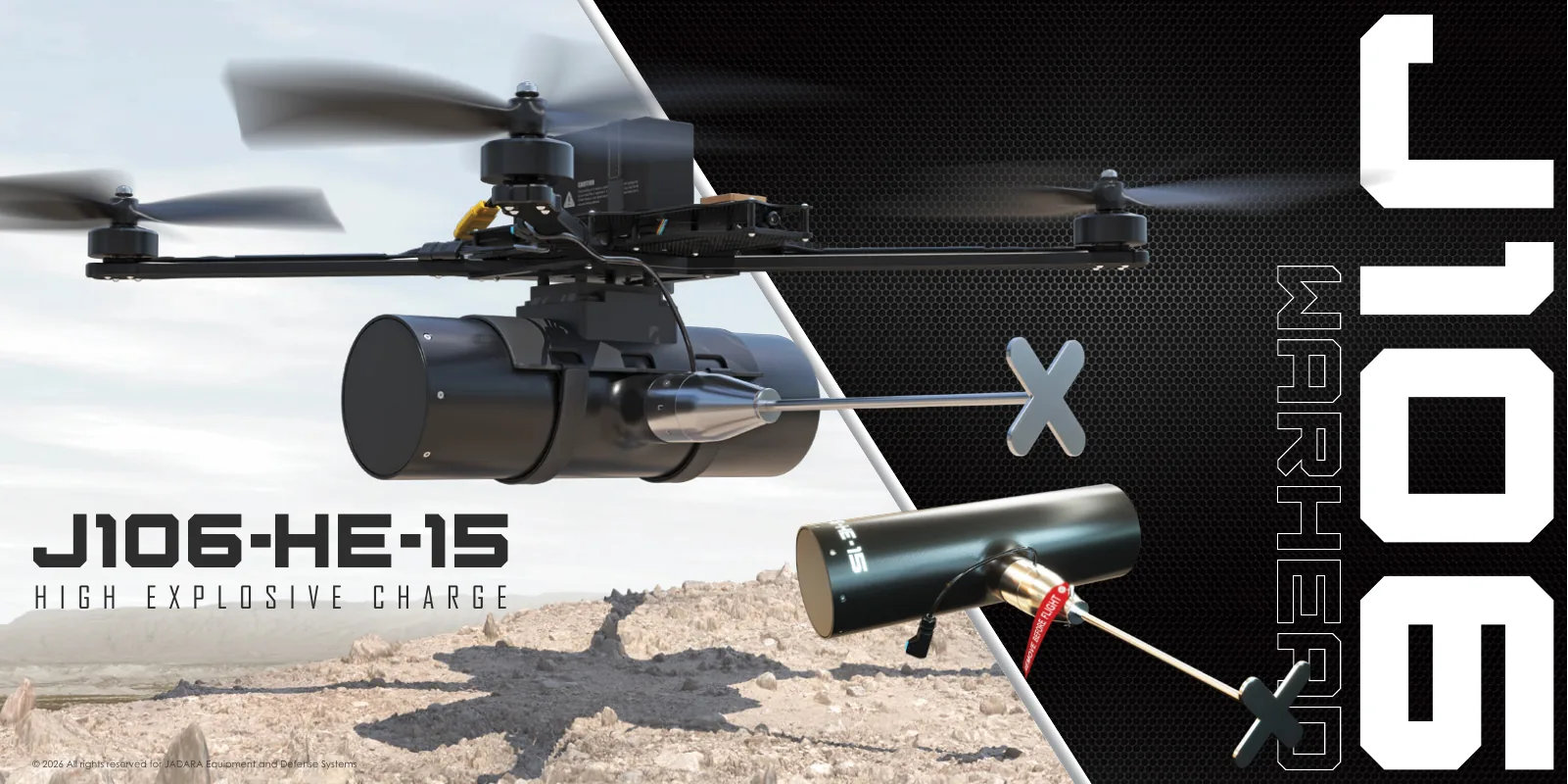

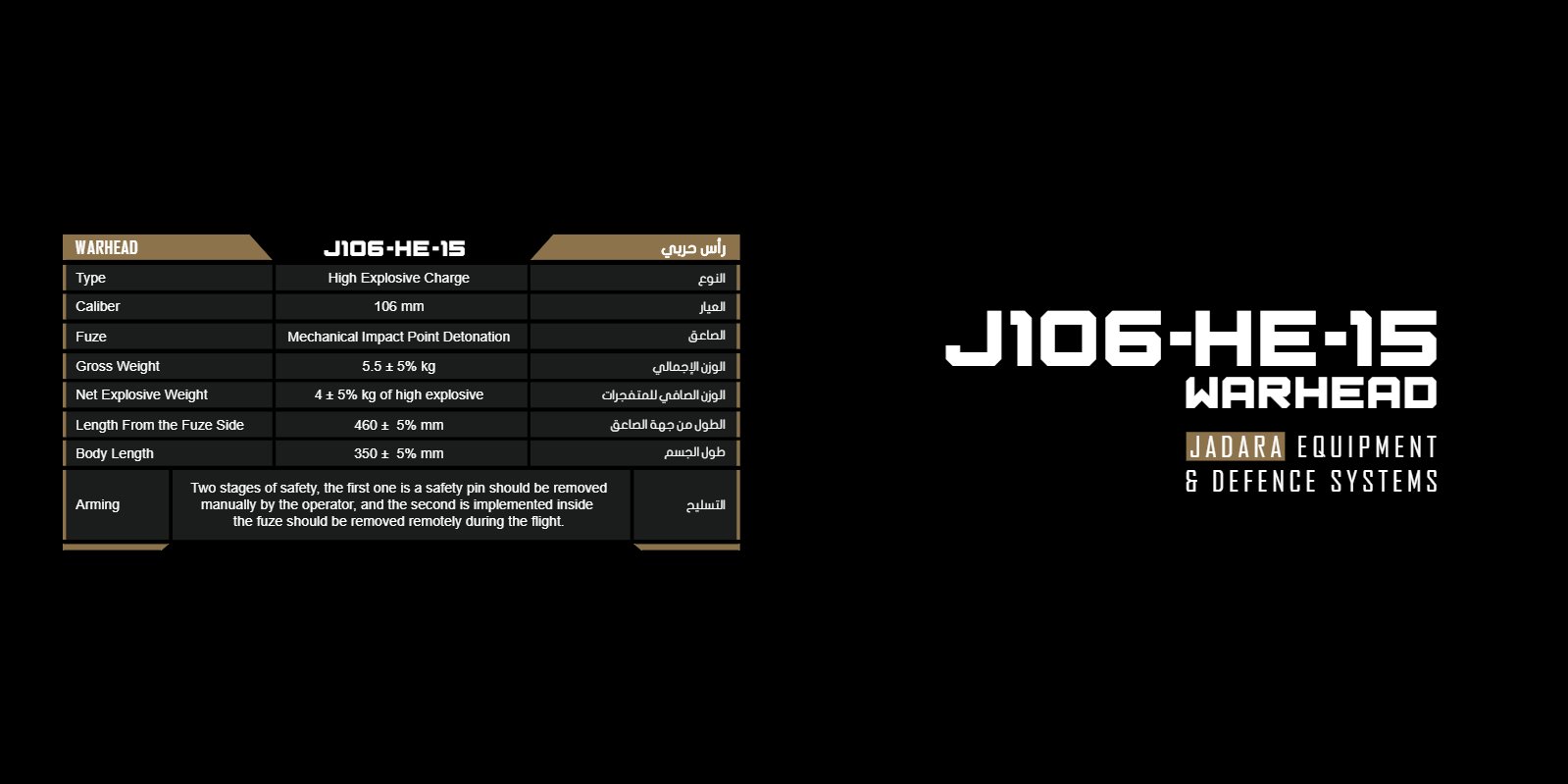

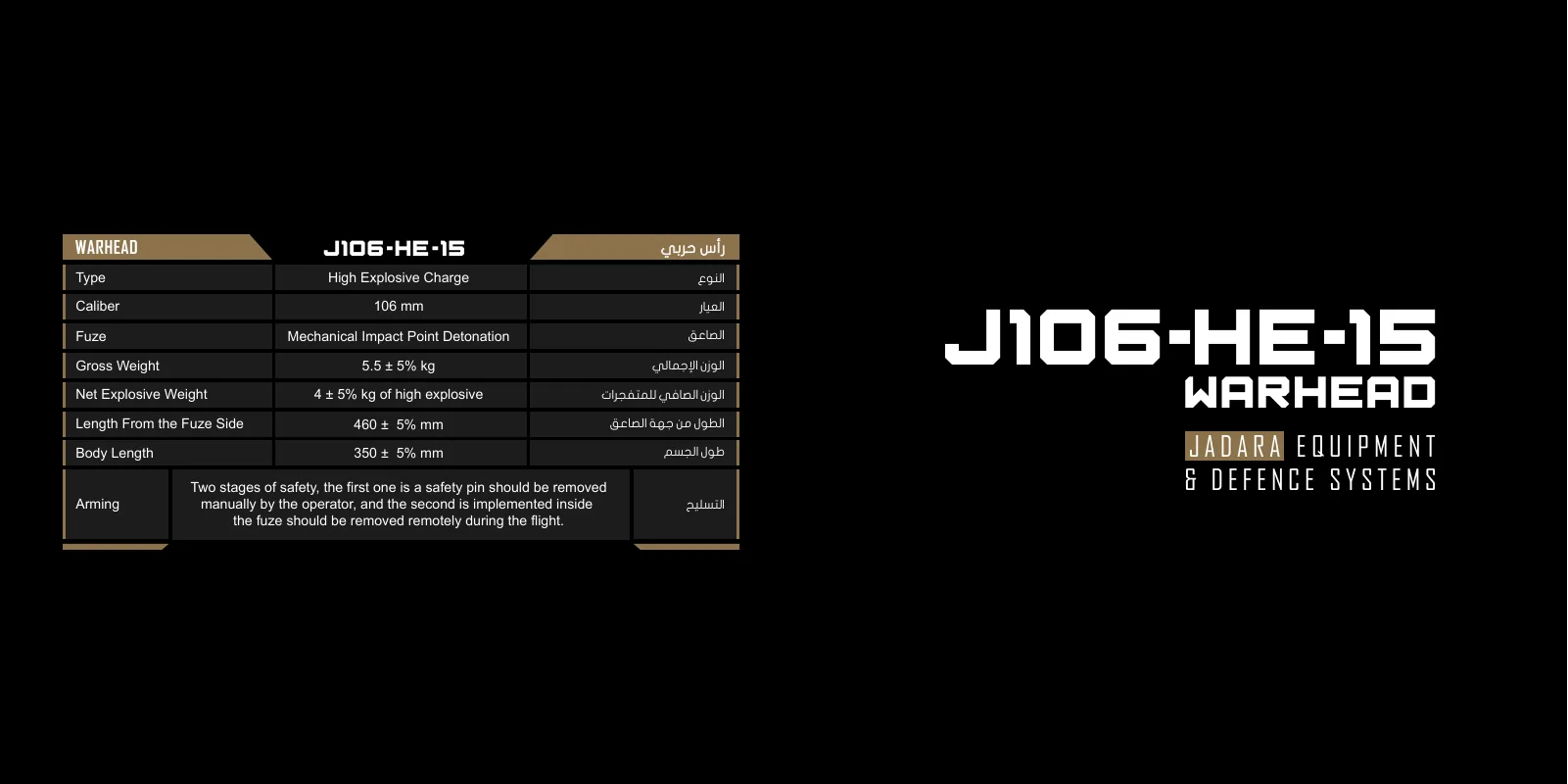

High Explosive Charge / J106-HE-15
—
Type
High Explosives Charge
—
Caliber
106 mm
—
Fuze
Mechanical Impact Point Detonation
—
Gross Weight
5.5 ± 5% kg
—
Net Explosive Weight
4 ± 5% kg of High Explosive
—
Length – Fuze Side
460 ± 5% mm
—
Length – Body
350 ± 5% mm
—
Arming
Two-stage safety: a manually removed safety pin before flight, and a second stage armed remotely via the control unit during flight.

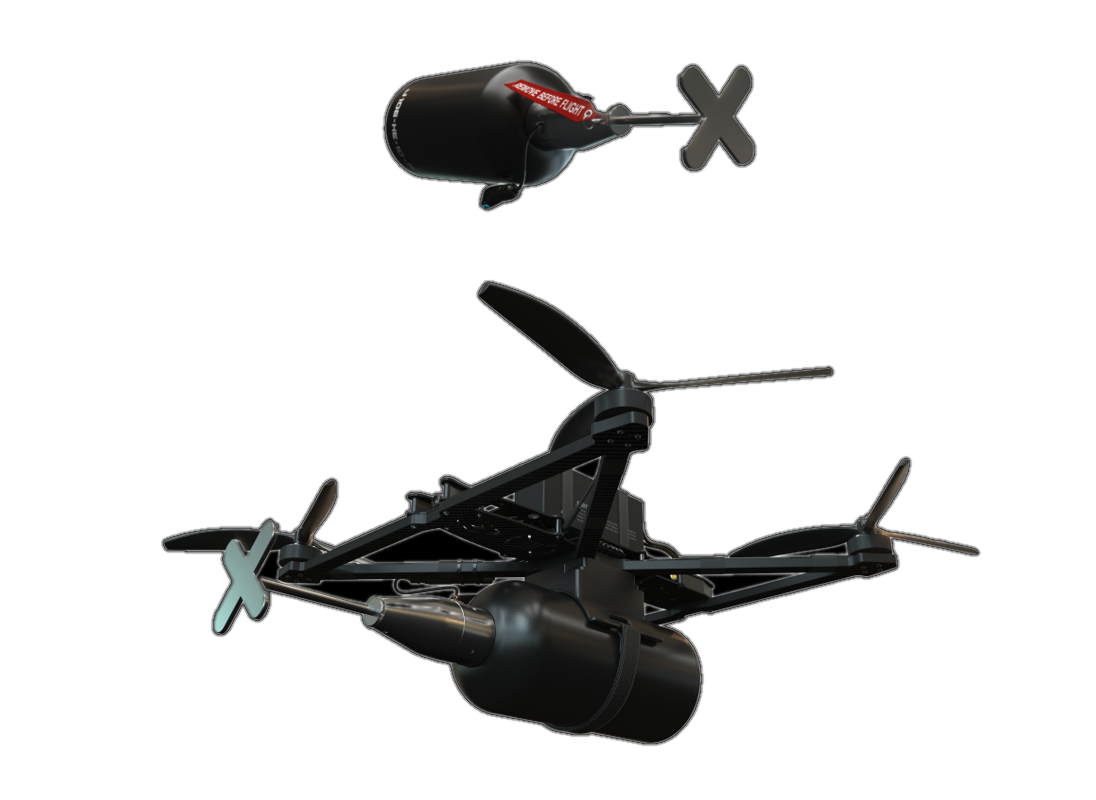

High Explosive Charge / J106X-HE-10
—
Type
High Explosives Charge
—
Caliber
106 mm
—
Fuze
Mechanical Impact Point Detonation
—
Gross Weight
2.7 ± 5% kg
—
Net Explosive Weight
1.8 ± 5% kg of High Explosive
—
Total Length
370 ± 5% mm
—
Arming
Two-stage safety: a manually removed safety pin before flight, and a second stage armed remotely via the control unit during flight.
